Character Common

This section collects shared Rabbit Heart character-reference notes and combined technical specs.

Pages

• Character Specs

Common Features

Morph Targets	Yes	~55 Apple Blendshapes
Full Body Under Clothes	Yes
Source Fbx	Included	You can find the source fbx files in the Additional Downloads
Change Material Color	Yes	RGB Mask Textures are provided to make color changes
Skeleton	Based on UE4 Mannequin	No Additional Bones
Textures	PBR (Physically Based Rendering)	Metallic Roughness Workflow
Animations	Only Demo Animations	Retargeted UE4 Mannequin Default Animations, a few of Paragon Animations and a few of Echo’s Animation (for Demonstrations only)

Character’s Skeleton

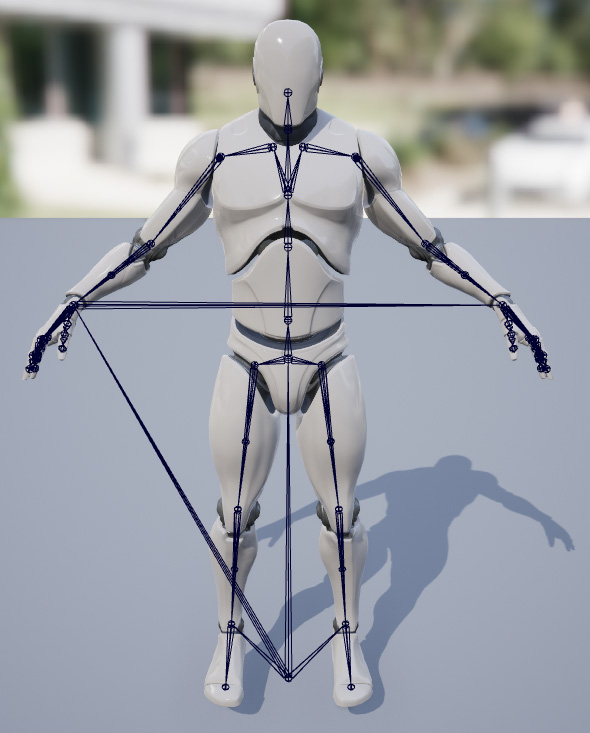

My current characters (Meryl, Shenya, Charles, Lia and Aren) follows the same skeleton as UE4’s Mannequin. They have the same bone names and skeleton structure, however the skeleton proportion of my characters are different from the UE Mannequins:

ue4-mannequin

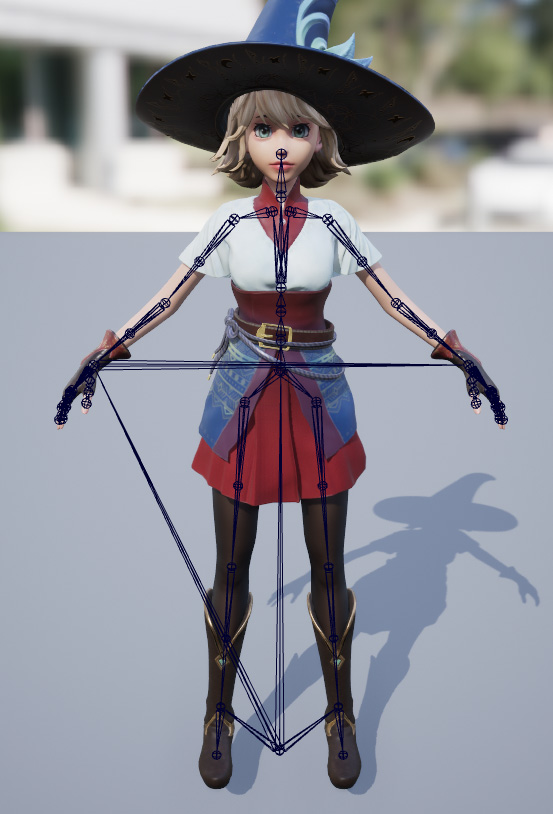

For example, Meryl’s skeleton has all the same bones but the joints position are different. As for joint orientation (ie. rotations), I try my best to match the original bone orientation of the UE4 mannequin above but because they are hand aligned (I use my eyeball to judge), the alignments are not machine-accurate.

meryl skeleton

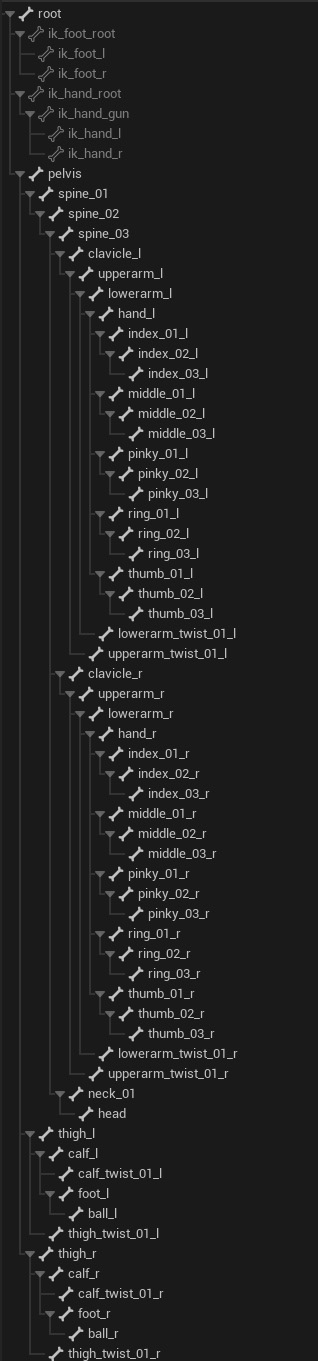

My current characters are having all these bones below (and no additional bones added):

ue4-mannequin-bones

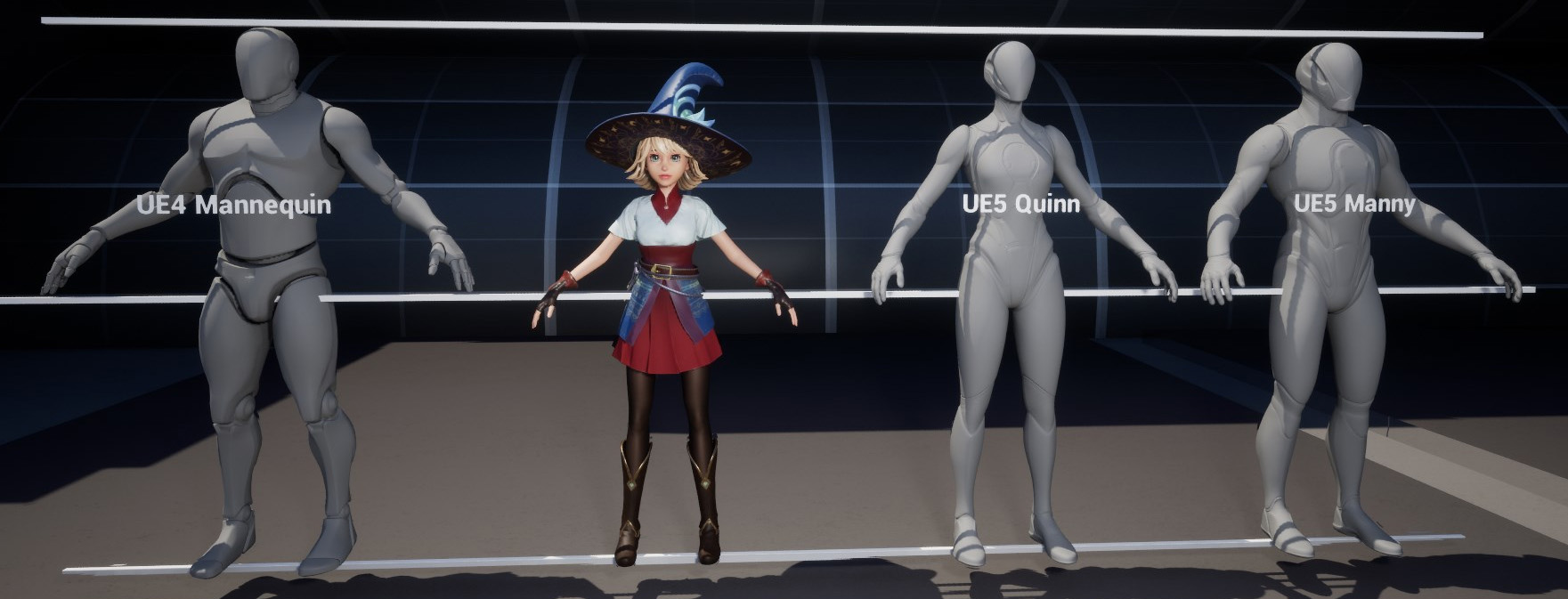

The character’s skeleton also has a different scale than UE4’s Mannequin, for example, Meryl has a smaller size:

meryl scale reference
